Architectural concept

Minimal Family House

Trapezoid-plot home with greenery on every edge — guest suite and social rooms below, master / junior master / children rooms and play hall above, rooftop sit-out with barbecue and kitchen garden.

Plot ~3,500 sq ft Road West / left 50′ Front / rear 64′ → 76′ Built-up ~2,450 sq ft G+1
~3,500
Plot area (sq ft)
~2,530
Permissible (~2/3)
~2,450
Proposed G+1 (sq ft)
~1,350
Open landscape (sq ft)
G+1+T
Levels

Reference board

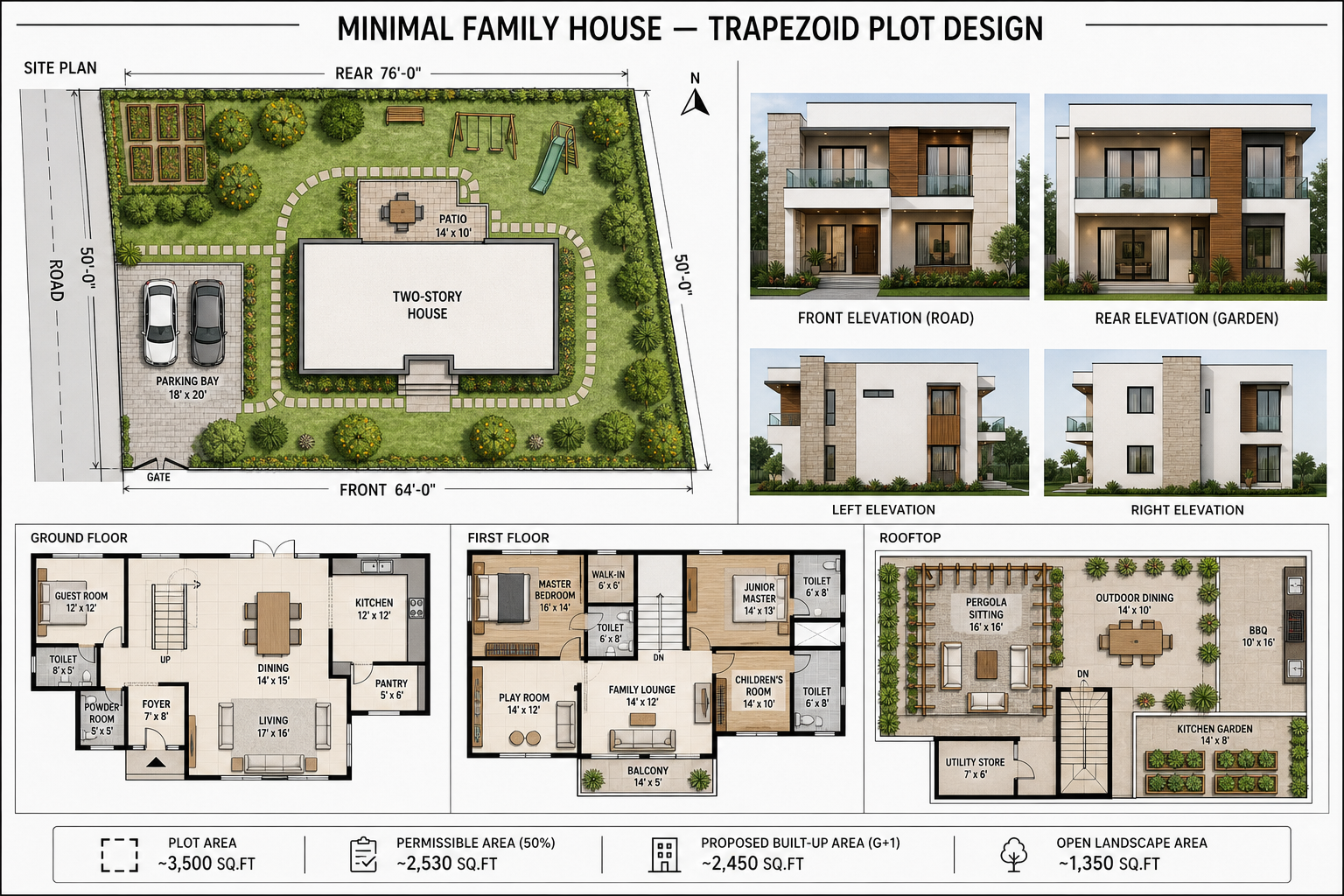

Approved visual target for the trapezoid plot — site, elevations, and floor plans. Detailed SVGs in the other tabs follow this layout.

Minimal Family House reference board: trapezoid site plan, elevations, ground floor, first floor, and rooftop plans

FIG. 00 — Reference presentation board (site · elevations · GF · FF · rooftop).

What this board locks

  • Trapezoid: front 64′, rear 76′, sides 50′; road on the left (west)
  • Two-car parking, front lawn, rear garden with play, patio off dining
  • GF guest en-suite + living / dining / kitchen + powder
  • FF master, junior master, children room, play room, family lounge + balcony
  • Rooftop pergola sit-out, outdoor dining, BBQ, kitchen garden

Design brief

Minimal massing, family-first planning, productive greenery for fresh air and home-grown food.

Program

  • Ground: foyer, living, dining, kitchen + pantry, powder, guest + en-suite, stair
  • First: master + WIC + bath, junior master + bath, children + bath, play room, family lounge + balcony
  • Roof: pergola sitting, outdoor dining, BBQ, kitchen garden, stair head, utility
  • Site: gate, 2-car parking, front lawn, rear garden + kids play, patio

Assumptions

  • Plot ≈ ((64 + 76) / 2) × 50 = ~3,500 sq ft
  • Working setbacks: front/road 10′, rear 8′, sides 5′ (confirm locally)
  • Proposed built-up G+1 ≈ 2,450 sq ft under ~2,530 permissible
  • RCC frame, flat terrace, white plaster + stone + wood accents

Site & landscape plan

Road on left (50′). Front lawn to the south (64′ edge), rear garden to the north (76′ edge). House mid-lot with patio and productive planting.

MASTER SITE PLAN — TRAPEZOID · ROAD WEST Front (S) 64′-0″ · Rear (N) 76′-0″ · Sides 50′-0″ · N↑ N 50′-0″ WIDE ROAD GATE PARKING 18′ × 20′ 2 cars FRONT LAWN HOUSE G + 1 + terrace entry PATIO 14′ × 10′ REAR GARDEN bench kids play veg / fruit FRONT / SOUTH 64′-0″ REAR / NORTH 76′-0″ WEST 50′-0″ EAST ~50′-0″ ZONES 1 Gate + drive 2 Parking 18′×20′ (2 cars) 3 Front lawn + trees 4 House mid-lot 5 Patio 14′×10′ 6 Rear garden + play 7 Veg / fruit beds 8 Perimeter hedge Open landscape ~1,350 sq ft Hardscape kept minority Plot area ≈ 3,500 sq ft ((64+76)/2) × 50

FIG. 01 — Site plan aligned to the reference board. Road west; front lawn south; rear garden and patio north.

Lawn / softscape Kitchen garden Path / patio / parking Built form

Ground floor plan

Open living–dining toward the rear patio; kitchen with pantry; guest suite with en-suite; powder for visitors.

GROUND FLOOR · FOYER · LIVING · DINING · KITCHEN · GUEST Entry from south path · Patio north · Scale approx. 1∶60 PATIO 14′ × 10′ LIVING 17′-0″ × 16′-0″ DINING 14′-0″ × 15′-0″ → patio KITCHEN 12′ × 12′ PANTRY 5′+5′-3″ FOYER 7′ × 8′ STAIR PWD 5′×5′-6″ HALL GUEST ROOM 12′ × 12′ EN-SUITE 5′-6″ × 8′ UTILITY / store GF HIGHLIGHTS Guest en-suite only private sleeping room on GF Powder for day guests Dining opens to patio Kitchen + pantry stack toward garden light

FIG. 02 — Ground floor per reference: living 17×16, dining 14×15, kitchen 12×12, guest 12×12 + en-suite, powder, foyer.

First floor plan

Master and junior master with en-suites, children room with bath, dedicated play room, family lounge to rear balcony.

FIRST FLOOR · MASTER · JUNIOR MASTER · CHILDREN · PLAY Family lounge + balcony overlook rear garden BALCONY 14′ × 5′ FAMILY LOUNGE 14′ × 12′ MASTER BEDROOM 16′ × 14′ WIC 6′×7′ TOILET 6′×8′ JUNIOR MASTER 14′ × 13′ JR TOILET 5′ × 8′-6″ PLAY ROOM 14′ × 12′ CHILDREN'S ROOM 14′ × 10′ TOILET 6′ × 6′ STAIR CORRIDOR / store 3 BEDROOMS + PLAY Master + WIC + bath Junior master + bath Children + bath Play room 14′ × 12′ Lounge → balcony

FIG. 03 — First floor: three bedrooms with baths, play room, family lounge and rear balcony.

Rooftop plan

Pergola sitting, outdoor dining, barbecue, and raised kitchen-garden planters — with stair head and utility screened.

ROOFTOP · PERGOLA · DINING · BBQ · KITCHEN GARDEN Parapet 3′-6″ min · Non-slip · Waterproofed terrace STAIR HEAD 7′ × 16′ UTILITY 7′ × 6′ PERGOLA SITTING 16′ × 16′ OUTDOOR DINING 14′ × 10′ BBQ AREA 10′ × 16′ grill + counter KITCHEN GARDEN 14′ × 8′ planters

FIG. 04 — Rooftop: pergola 16×16, dining 14×10, BBQ 10×16, kitchen garden 14×8, stair head + utility.

Elevations

Modern minimal flat-roof mass — white plaster, stone cladding, warm wood panels, dark frames, glass railings.

FRONT ELEVATION — ROAD SIDE parking White plaster · stone base · wood accent · glass rail

FIG. 05 — Front (road) elevation.

REAR — GARDEN Sliding glass to patio / garden

FIG. 06 — Rear elevation.

SIDE ELEVATION Stone + wood material play

FIG. 07 — Side elevation.

Schedules

Room sizes and landscape notes taken from the approved reference board.

Area schedule

SpaceLevelSize
FoyerGF7′ × 8′
LivingGF17′ × 16′
DiningGF14′ × 15′
KitchenGF12′ × 12′
PantryGF5′ / 5′-3″ zones
Guest roomGF12′ × 12′
Guest en-suiteGF5′-6″ × 8′
PowderGF5′ × 5′-6″
PatioSite14′ × 10′
Master bedroomFF16′ × 14′
Master WICFF6′ × 7′
Master toiletFF6′ × 8′
Junior masterFF14′ × 13′
Junior toiletFF5′ × 8′-6″
Children's roomFF14′ × 10′
Children toiletFF6′ × 6′
Play roomFF14′ × 12′
Family loungeFF14′ × 12′
BalconyFF14′ × 5′
Pergola sittingRoof16′ × 16′
Outdoor diningRoof14′ × 10′
BBQ areaRoof10′ × 16′
Kitchen gardenRoof14′ × 8′
Proposed built-up G+1—~2,450 sq ft

Landscape

ZoneElementsPurpose
Front lawnLawn, shade trees, shrubsArrival, privacy from road
Parking18′ × 20′ permeable bay2 cars
PatioOutdoor dining off dining roomFamily meals outdoors
Rear gardenBench, kids play set, fruit treesPlay + orchard
Veg / fruit bedsRaised beds + climbersHome vegetables & fruit
Roof plantersKitchen garden 14′ × 8′Herbs & shallow veg
PerimeterHedge + climbersFresh-air buffer

Concept design aligned to the reference board — not a stamped permit set. Confirm setbacks, FAR/FSI, height, and structure with a licensed local architect/engineer. Plot area shown as ~3,500 sq ft from ((64+76)/2)×50.
